"Xinmiao Machinery Raw Coal Dryer: High - Efficiency and Energy - Saving Coal Drying Expert

I. Core Technical Advantages

With 7 years of dedicated research and development in high - moisture material drying technology, Xinmiao Machinery's self - developed raw coal dryer system achieves:

Ultra - Large - Scale Processing Capacity

8 - hour processing capacity: 200 - 2000 tons (model - dependent)

24 - hour continuous operation mode

Maximum single - machine daily capacity: up to 3000 tons/day

Full Heat Source Adaptation Scheme

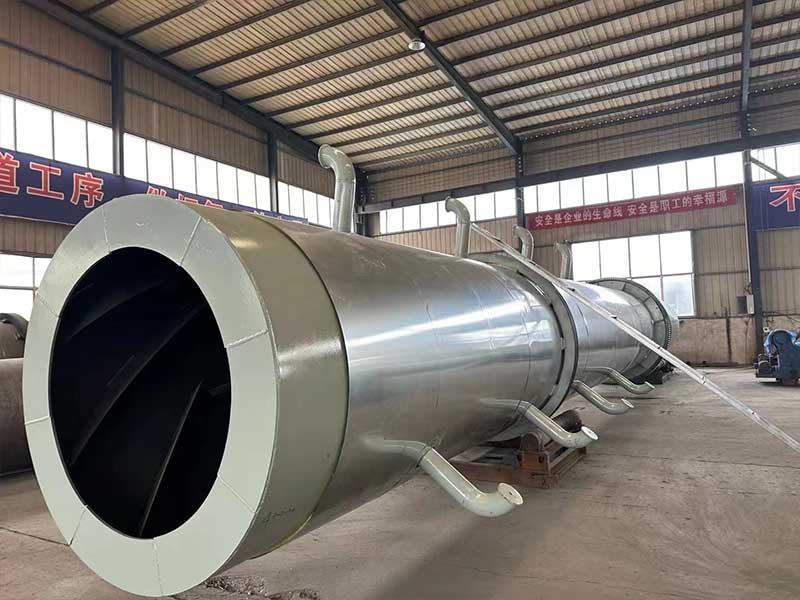

Raw Coal Dryer

Heat Transfer Oil/Steam Type

Hot Air Furnace Heating System

Steam Waste Heat Recovery Technology

Clean Energy

Traditional Fuel

Natural Gas

Biomass Pellets

Coal

Mixed Fuel

Intelligent Control System

PLC fully automatic control

Online moisture monitoring (accuracy ±0.5%)

Adaptive temperature adjustment (range 100 - 800℃)

II. Technical Parameter Comparison

Model Processing Capacity (t/8h) Energy Consumption (kWh/t) Moisture Control (%) Installed Power (kW)

XM - 200 200 ≤18 ≤12 150

XM - 1000 1000 ≤15 ≤10 450

XM - 2000 2000 ≤12 ≤8 800

III. Environmental Solutions

Three - Stage Dust Removal System

Cyclone dust removal → Bag dust removal → Wet desulfurization

Dust emissions ≤10mg/m³ (national standard limit: 50mg/m³)

Fast Environmental Assessment Process

Provide full - set environmental certification documents

Equipped with:

Flue gas online monitoring system

Waste heat recovery device

Low - nitrogen burner (optional)

Energy Optimization Technology

Thermal efficiency increased to 89%

Steam - type equipment cost per ton of coal ≤¥12

Hot air - type equipment cost per ton of coal ≤¥18

IV. Service Support System

Full - Cycle Services

Pre - sales: Free coal quality analysis + customized solutions

Mid - sales: Turnkey project (including civil engineering guidance)

After - sales: Lifetime maintenance (response time ≤4 hours)

Global Case Network

Domestic: 32 demonstration projects in China

International: Successful cases in 8 countries including Indonesia, Australia, and South Africa

Economic Commitment

Guarantee: Industry - lowest drying cost (with third - party audit report)

Signed: Energy - saving compliance agreement

V. Selection Guide

Contact Xinmiao Machinery today to obtain the Raw Coal Drying Cost Analysis Report. We will provide:

Customized process flow diagrams

Detailed equipment configuration lists

Three - year operation and maintenance cost forecasts"
