"China Xinmiao Machinery Straw Dryer: Expert in Agricultural Waste Resource Utilization

Company Profile

China Xinmiao Machinery has been deeply involved in the industrial drying equipment field for 7 years, focusing on the research and development of high-value straw processing technology. It has successfully created an intelligent straw drying system with independent intellectual property rights. The company's products are widely used in industries such as biomass power generation, organic fertilizer production, and papermaking, serving over 180 global customers. The equipment is exported to 30 major agricultural countries including the United States, Australia, and India. With a cumulative processing of over 80 million tons of straw, the company's technical strength has obtained EU CE certification and China Environmental Product certification.

Core Technical Advantages

High-efficiency Energy-saving Process

Hot Air Penetration Drying Technology: The patented air distribution design increases the contact area between the straw and hot air by 4 times, and the drying efficiency is increased by 50%.

Waste Heat Cascade Utilization: Integrated flue gas waste heat boiler, with only 15 kWh of energy consumption per ton (the industry average is 22 kWh).

Intelligent Control System

Equipped with a PLC automation system to support real-time monitoring and dynamic adjustment of feeding speed, temperature, and humidity.

Equipped with an AI algorithm to automatically optimize operation parameters, achieving unattended operation with a fault warning accuracy rate of 99%.

Advanced Environmental Governance

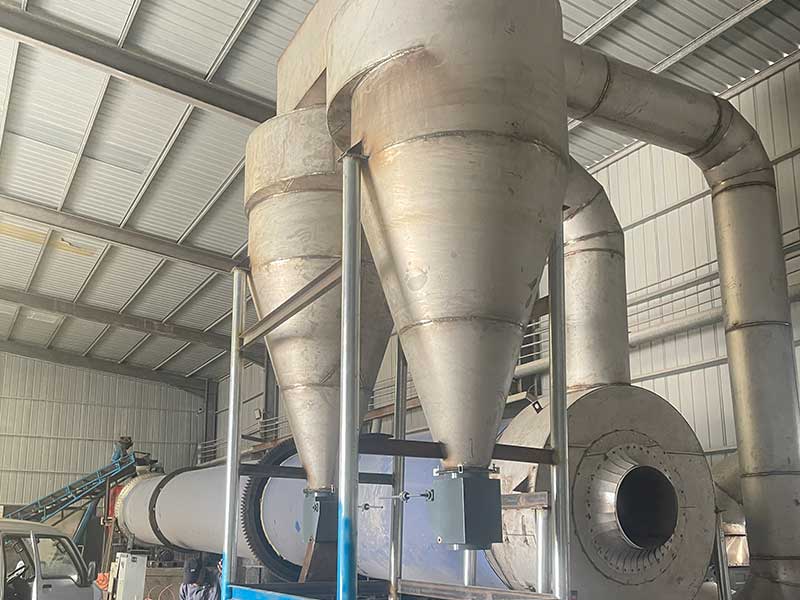

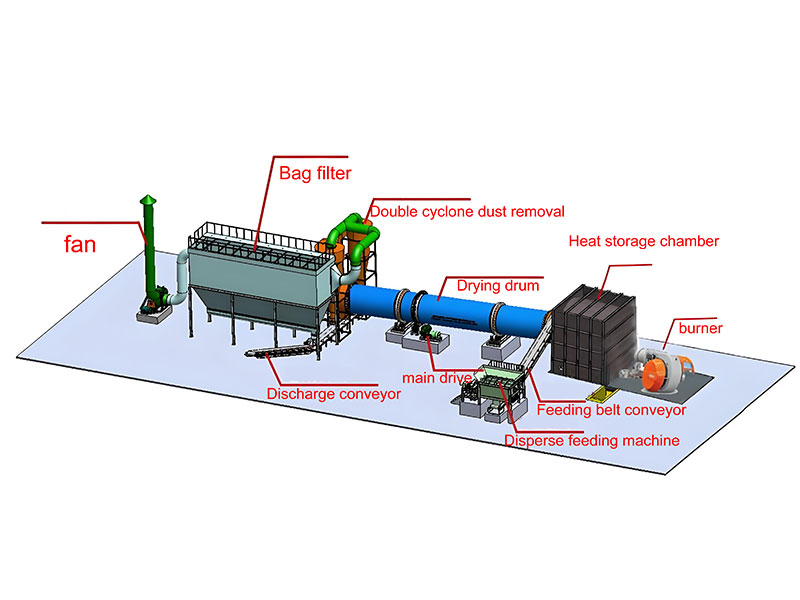

Four-stage Dust Removal System: Cyclone pre-dust removal → multi-tube dust removal → bag filter fine filtration → wet scrubbing, with dust emissions ≤ 5mg/m³.

Malodorous Gas Treatment Module: A biological deodorization device can be optionally configured, with NH3 emissions < 10mg/m³, meeting the world's most stringent environmental standards.

Wear-resistant and Corrosion-resistant Design

The drum lining uses high-chromium cast iron composite material, extending the service life to more than 10 years.

The special inclined angle design of the spiral lifting device reduces material retention and wear by 60%.

Customized Solutions

Project Standard Configuration Optional Upgrades

Processing Capacity 300-2500 tons/8 hours 4000 tons/day super-large unit

Inlet Moisture ≤70% Special high-moisture (≤80%) pre-treatment module

Outlet Form Loose particles (≤12% moisture) Pelletizing system

Calorific Value Increase ≥3500 kcal/kg Carbonization and quality improvement module (optional)

Global Benchmark Cases

US Biomass Power Plant

Customized 2500 tons/day straw drying line with a waste heat recovery system, saving over 8 million yuan in annual energy costs.

The calorific value of the finished product is increased to 4200 kcal/kg, meeting the requirements for coal substitution.

Australian Agricultural Group

Challenged high-toughness wheat straw, achieving a 70% increase in processing efficiency through a dual-drum series process.

Integrated magnetic separation module reduces the metal impurity content to below 0.01%.

Indian Papermaking Enterprise

Adopted a fully enclosed explosion-proof design to achieve safe drying of straw dust.

Integrated low-nitrogen combustion technology complies with EU EN 13284-1 emission standards."
