"China Xinmiao Machinery Wood Chips Dryer: Pioneer in Biomass Energy Development

Company Profile

China Xinmiao Machinery has been deeply engaged in the industrial drying equipment field for 7 years, focusing on the R&D of high-value wood chips processing technology and successfully creating an intelligent wood chips drying system with independent intellectual property. The company's products are widely applied in industries such as wood-based panels, papermaking, and biomass power generation, serving over 200 global clients. Equipment is exported to 25 countries and regions including Canada, Brazil, and Germany, with a cumulative wood chips processing capacity exceeding 50 million tons. The company's technical strength has obtained EU CE certification and China Environmental Product certification.

Core Technical Advantages

High-efficiency Energy-saving Process

Dual-spiral Heat Exchange Technology: Through a combined co-current and counter-current drying process, thermal efficiency is increased to 87%, and energy consumption per ton is reduced by 32% compared to traditional equipment.

Waste Heat Cascade Utilization: Integrated flue gas waste heat boiler saves over 600 tons of standard coal annually, significantly reducing operating costs.

Intelligent Control System

Equipped with a PLC automation system to support real-time monitoring and dynamic adjustment of feeding speed, temperature, and humidity.

Equipped with an AI algorithm to automatically optimize operation parameters, achieving unattended operation with a fault early warning accuracy rate of 99%.

Advanced Environmental Governance

Four-stage Dust Removal System: Cyclone pre-dust removal → multi-tube dust removal → bag filter fine filtration → wet scrubbing, with dust emissions ≤5mg/m³.

VOCs Purification Module: Optional catalytic combustion device can be configured, with organic matter emissions <20mg/m³, meeting the world's most stringent environmental standards.

Wear-resistant and Corrosion-resistant Design

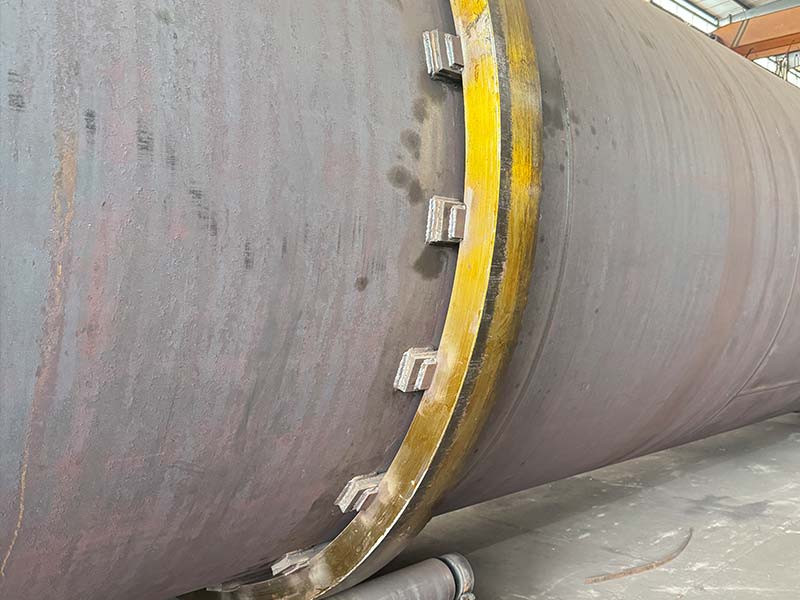

The drum lining uses high-chromium cast iron composite material, extending service life to over 10 years.

Special inclined angle design of the spiral lifting device reduces material retention and wear by 60%.

Customized Solutions

Project Standard Configuration Optional Upgrades

Processing Capacity 200-2000 tons/8 hours 3000 tons/day super-large unit

Inlet Moisture ≤60% Special high-moisture (≤70%) pre-treatment module

Outlet Moisture ≤10% ≤5% (deep drying module)

Particle Size Control 20-80 mesh Air classification system (up to 200 mesh)

Global Benchmark Cases

Canadian Paper Group

Customized 2000 tons/day wood chips drying line with waste heat recovery system, saving over 6 million yuan in annual energy costs.

Finished product moisture content is stably controlled below 8%, meeting the requirements for high-grade pulp production.

Brazilian Biomass Power Plant

Challenged high-moisture eucalyptus wood chips (moisture >65%), achieving a 70% increase in processing efficiency through a dual-drum series process.

Integrated magnetic separation module reduces metal impurity content to below 0.01%.

German Wood-based Panel Enterprise

Adopted fully enclosed explosion-proof design to achieve safe drying of wood powder.

Integrated low-nitrogen combustion technology complies with EU EN 13284-1 emission standards.
